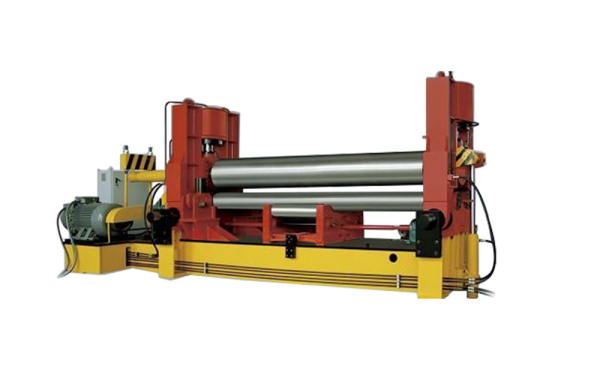

3 Roller Hydraulic Bending Machine RPB-16X2000

5fc608ec44d75
5fc608f25bd45
description1
The upper roll can move vertically as well as horziontally. It has double function of pre-bending and rounding.The upper roll in drum-type, and support roll is added to the lower roll. Through regulat
PRODUCT OVERVIEW
The upper roll can move vertically as well as horziontally. It has double function of pre-bending and rounding.

The upper roll in drum-type, and support roll is added to the lower roll. Through regulations of the support roll, it can coil high precision.

Realize NC control and single-person operation. Simple & reliable, greatly raising efficiency.

Add up tapering reel and realize zero-piece coiling with great taper.

Vertical & horizontal motion of the upper roll is digitally indicated. Setting of motion scope is distinctive and direct.
PARAMETER

Model

Pressureon
the upper
roller (Tons)

Max.plate thickness

Plate width (mm)

Diameter of
upper roller (mm)

Diameter of
lower rotter (mm)

Central distance
(mm)

Motor(kw)



End
bending
(mm)

Central
(mm)





Driving

Hydraulic

Shift

RPB 8x1500

25

6

8

1500

195

125

160

3

2.2

0.75

RPB 6x2000

25

4.5

6

2000

195

125

160

3

2.2

0.75

RPB 8x2000

30

5.5

8

2000

205

125

160

3

2.2

0.75

RPB 10x1500

37

8

10

1500

205

135

180

4

2.2

0.75

RPB 8x2500

37

5.7

8

2500

235

135

180

4

2.2

0.75

RPB 11x1500

45

9

11

1500

215

135

180

4

2.2

0.75

RPB 10x2000

45

7.5

10

2000

235

135

180

4

2.2

0.75

RPB 9x2600

45

6.5

9

2500

245

135

180

4

2.2

0.75

RPB 12x2000

55

10

12

2000

245

145

200

5.5

4

0.75

RPB 10x2500

55

8

10

2500

255

145

200

5.5

4

0.75

RPB 12x2000

65

10

12

2000

250

145

200

5.5

4

0.75

RPB 10x3000

65

8

10

3000

280

145

200

5.5

4

0.75

RPB 16x2000

75

12

16

2000

255

150

245

7.5

4

1.1

RPB 14x2500

75

10

14

2500

270

150

245

7.5

4

1.1

RPB 13x3000

75

9

13

3000

290

150

245

7.5

4

1.1

RPB 17x2500

100

13

17

2500

300

165

270

15

5.5

1.5

RPB 18x3000

100

11

15

3000

325

165

270

15

5.5

1.5

RPB 20x2500

130

16

20

2500

330

180

300

15

5.5

2.2

RPB 18x3000

130

14

18

3000

350

180

300

15

5.5

2.2

RPB 22x2500

160

18

22

2500

360

200

330

18.5

7.5

2.2

RPB 20x3000

160

16

20

3000

375

200

330

18.5

7.5

2.2

RPB 25x2500

190

20

25

2500

380

220

360

22

7.5

4

RPB 22x3000

190

19

22

3000

400

220

360

22

7.5

4

RPB 30x2500

230

25

30

2500

410

235

380

30

11

4

RPB 27x3000

230

22

27

3000

425

235

380

30

11

4

RPB 32x2500

270

28

32

2500

430

250

400

30

11

4

RPB 30x3000

270

25

30

3000

450

250

400

30

11

4

RPB 28x3500

270

23

28

3500

470

250

400

30

11

4

RPB 25x4000

270

20

25

4000

490

250

400

30

11

4

RPB 36x2500

320

30

36

2500

460

260

420

37

15

5.5

RPB 32x3000

320

28

32

3000

480

260

420

37

15

5.5

RPB 28x3500

320

25

28

3500

500

260

420

37

15

5.5

RPB 26x4000

320

22

26

4000

520

260

420

37

15

5.5

RPB 40x2500

380

35

40

2500

500

275

460

45

22

5.5

RPB 35x3000

380

32

35

3000

500

275

460

45

22

5.5

RPB 30x4000

380

25

30

4000

550

275

460

45

22

5.5

RPB 45x2500

430

40

45

2500

520

290

500

55

22

7.5

RPB 40x3000

430

36

40

3000

540

290

500

55

22

7.5

RPB 32x4000

430

28

32

4000

580

290

500

55

22

7.5

RPB 45x3000

540

40

45

3000

590

340

610

55

22

11

RPB 40x4000

540

35

40

4000

630

340

610

55

22

11

RPB 55x3000

610

45

55

3000

620

360

650

75

30

15

RPB 45x4000

610

40

45

4000

660

360

650

75

30

15

RPB 40x5000

610

32

40

5000

700

360

650

75

30

15

RPB 36x6000

610

30

36

6000

730

360

650

75

30

15

RPB 60x3000

690

50

60

3000

650

380

700

75

30

15

RPB 50x4000

690

45

50

4000

700

380

700

75

30

15

RPB 45x5000

690

38

45

5000

740

380

700

75

30

15

RPB 40x6000

690

35

40

6000

760

380

700

75

30

15

RPB 70x3000

850

60

70

3000

710

420

780

75

37

15

RPB 55x4000

850

50

55

4000

750

420

780

90

37

15

RPB 75x3000

930

65

75

3000

740

440

820

90

37

15

RPB 60x4000

930

55

60

4000

780

440

820

90

37

15

RPB 80x3000

1050

70

80

3000

770

460

880

90

37

18.5

RPB 65x4000

1050

60

65

4000

810

460

880

90

37

18.5

RPB 85x3000

1150

75

85

3000

800

480

920

110

45

18.5

RPB 70x4000

1150

65

70

4000

840

480

920

110

45

18.5

RPB 100x3000

1350

90

100

3000

860

480

920

110

45

22

RPB 100x4000

1350

85

100

4000

940

560

1080

132

55

30
